Main photoD100T
Compact · Ø 99 · L1 45.5 mm · compact

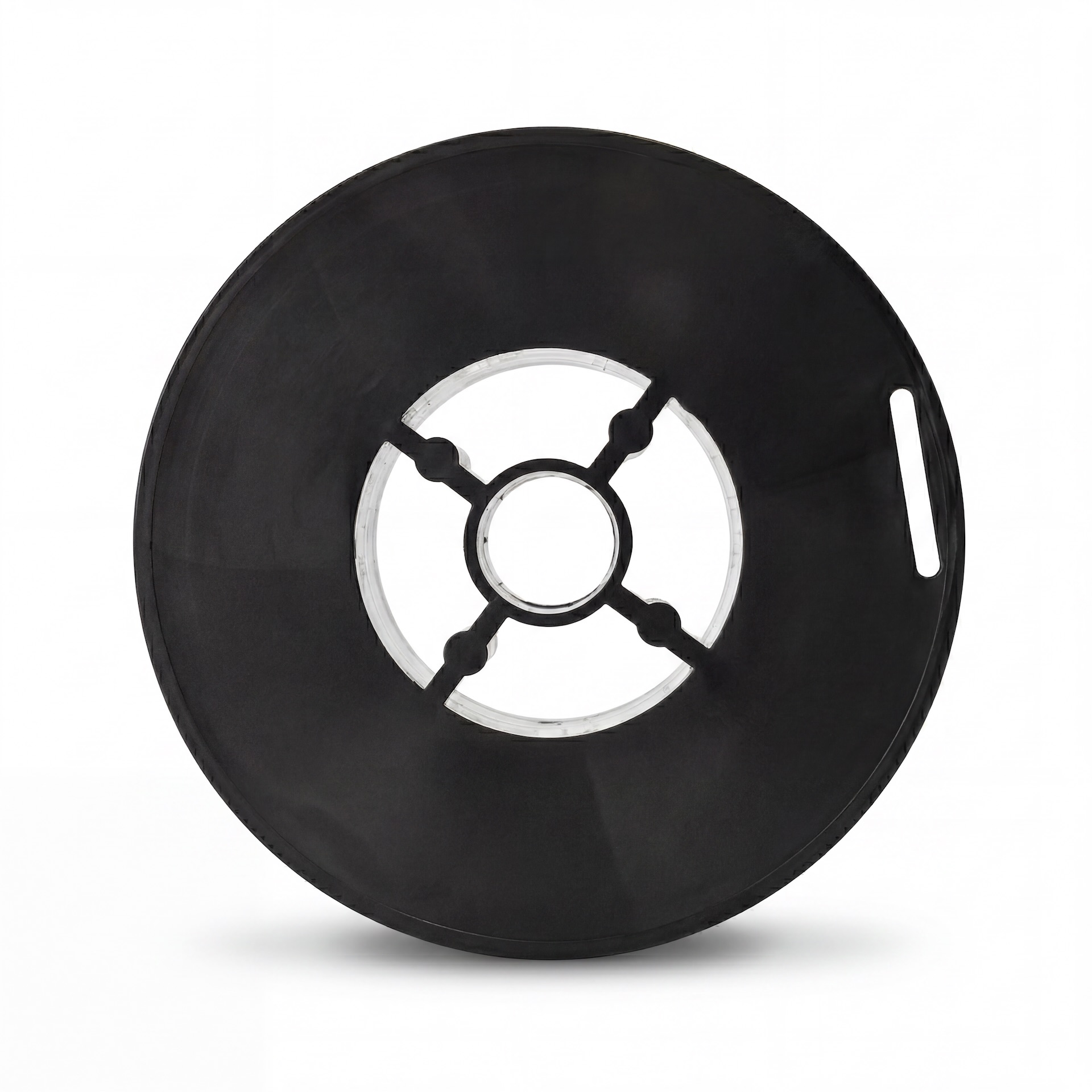

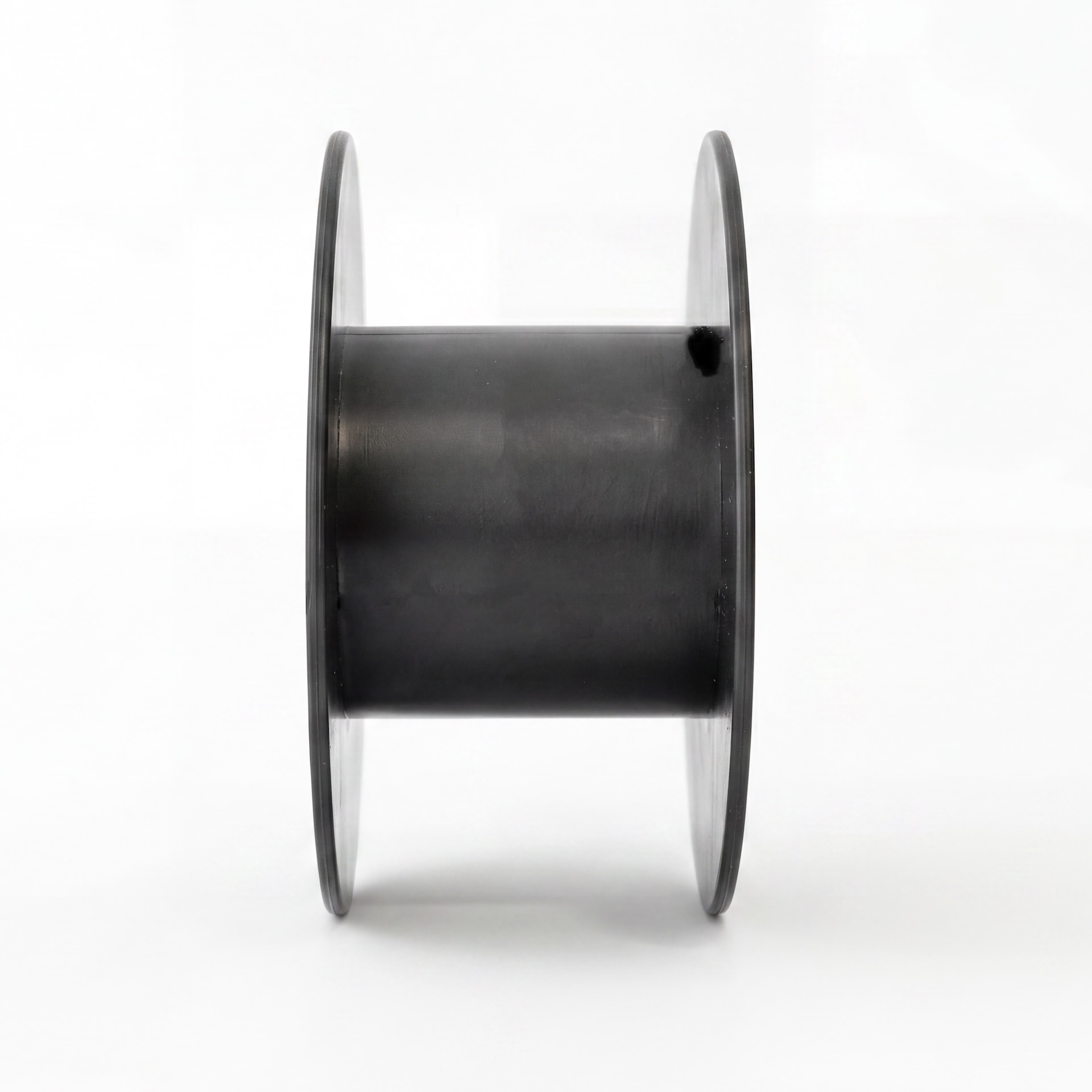

D100T Plastic Spool
Modified D100 with reinforced flanges for increased stability during winding and transport. Suited to automated lines with higher requirements on packaging strength. Typically used for welding wire weighing 0.45–1 kg.
Applications
- ›Welding wire
- ›3D filament
- ›Other wound products, depending on technical requirements
Technical specifications
Datasheet| Outer flange diameter (D1), mm | 99 |
|---|---|
| Winding diameter (D2), mm | 49.5 |
| Central hole (D3), mm | 16.5 |
| External width (L1), mm | 45.5 |
| Winding width (L2), mm | 40.1 |
| Material | Polystyrene (PS), injection molded |
| Colors | Black, white, transparent, blue |
| Product weight, g | 55 |
| Max winding weight, kg | 1 |
| MOQ, pcs | 8 000 |
Packaging
Carton & pallet| Quantity per carton, pcs | 160 |
|---|---|
| Carton dimensions (L×W×H), mm | 600 × 400 × 220 |
| Quantity per pallet, pcs | 5 120 |
| Boxes per pallet, pcs | 32 |
| Pallet dimensions (L×W×H), mm | 1200 × 800 × 1950 |
| Full truck load, pcs | 122 880 |
MOQ & availability
MOQ 8 000 pcs per datasheet. Black stock; custom colors (white, transparent, blue) on request for project-based quantities. Send an RFQ to confirm color, lead time and packing.
Datasheet
D100T datasheetAvailable on request
Need a quote for D100T?
Send your specifications and quantity — we'll come back with MOQ, lead time and pricing.
