Mid-size · Ø 170 · L1 44 mm · mid-size

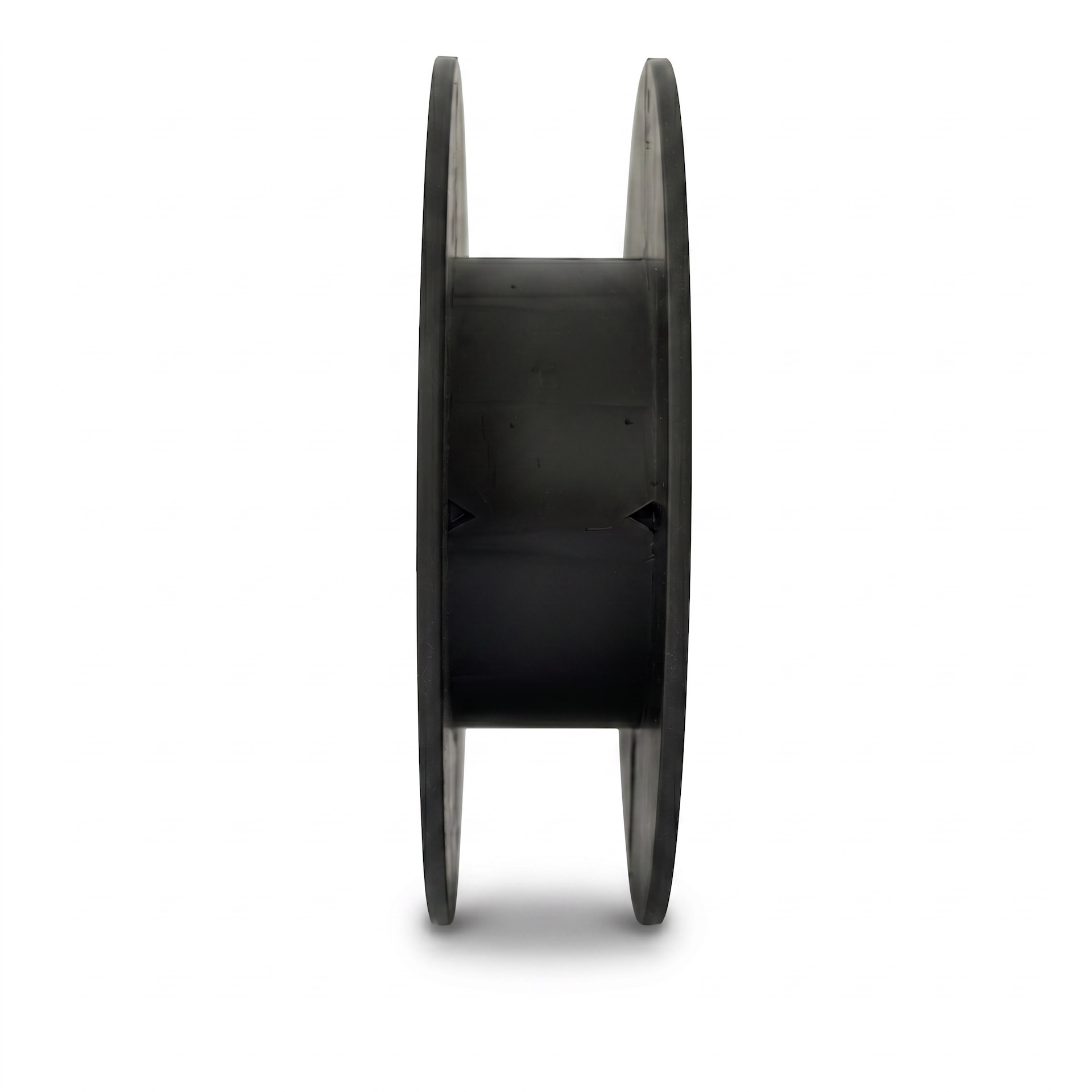

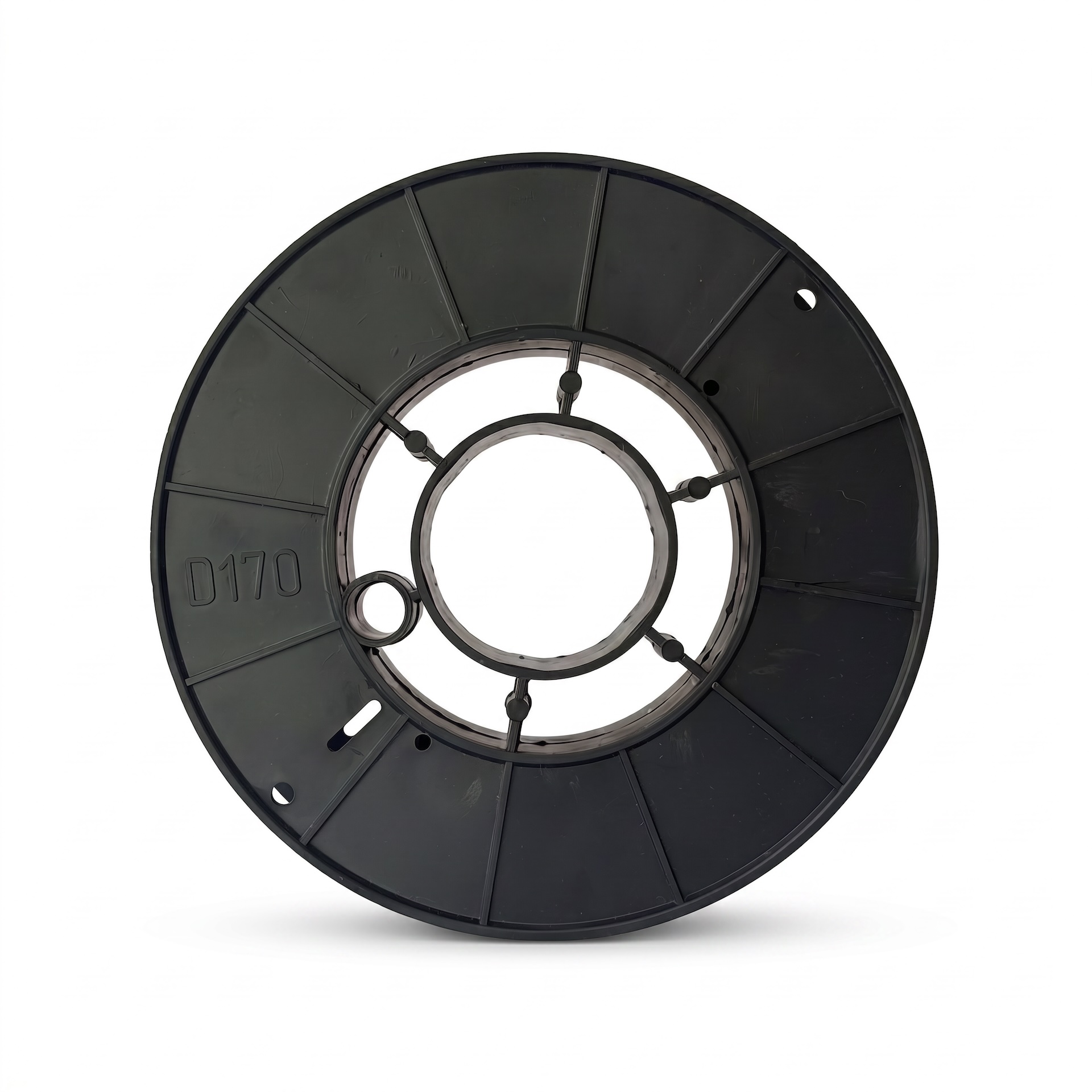

D170 Plastic Spool
Universal solution for winding welding wire weighing up to 3 kg. Stable geometry for serial production and compatibility with most industrial feeding mechanisms.
Applications
- ›Welding wire
- ›3D filament
- ›Other wound products, depending on technical requirements
Technical specifications
Datasheet| Outer flange diameter (D1), mm | 170 |
|---|---|
| Winding diameter (D2), mm | 95 |
| Central hole (D3), mm | 53 |
| External width (L1), mm | 44 |
| Winding width (L2), mm | 36 |
| Material | Polystyrene (PS), injection molded |
| Colors | Black, white, transparent, blue |
| Product weight, g | 137 |
| Max winding weight, kg | 3 |
| MOQ, pcs | 2 200 |
Packaging
Carton & pallet| Quantity per carton, pcs | 42 |
|---|---|
| Carton dimensions (L×W×H), mm | 600 × 400 × 220 |
| Quantity per pallet, pcs | 1 344 |
| Boxes per pallet, pcs | 32 |
| Pallet dimensions (L×W×H), mm | 1200 × 800 × 1950 |
| Full truck load, pcs | 32 256 |
MOQ & availability
MOQ 2 200 pcs per datasheet. Black stock; custom colors (white, transparent, blue) on request for project-based quantities.
Product Sheet
Download Product Sheet (PDF)PDF →Need a quote for D170?
Send your specifications and quantity — we'll come back with MOQ, lead time and pricing.
