Main photoD200
Standard · Ø 198 · L1 54.8 mm · standard

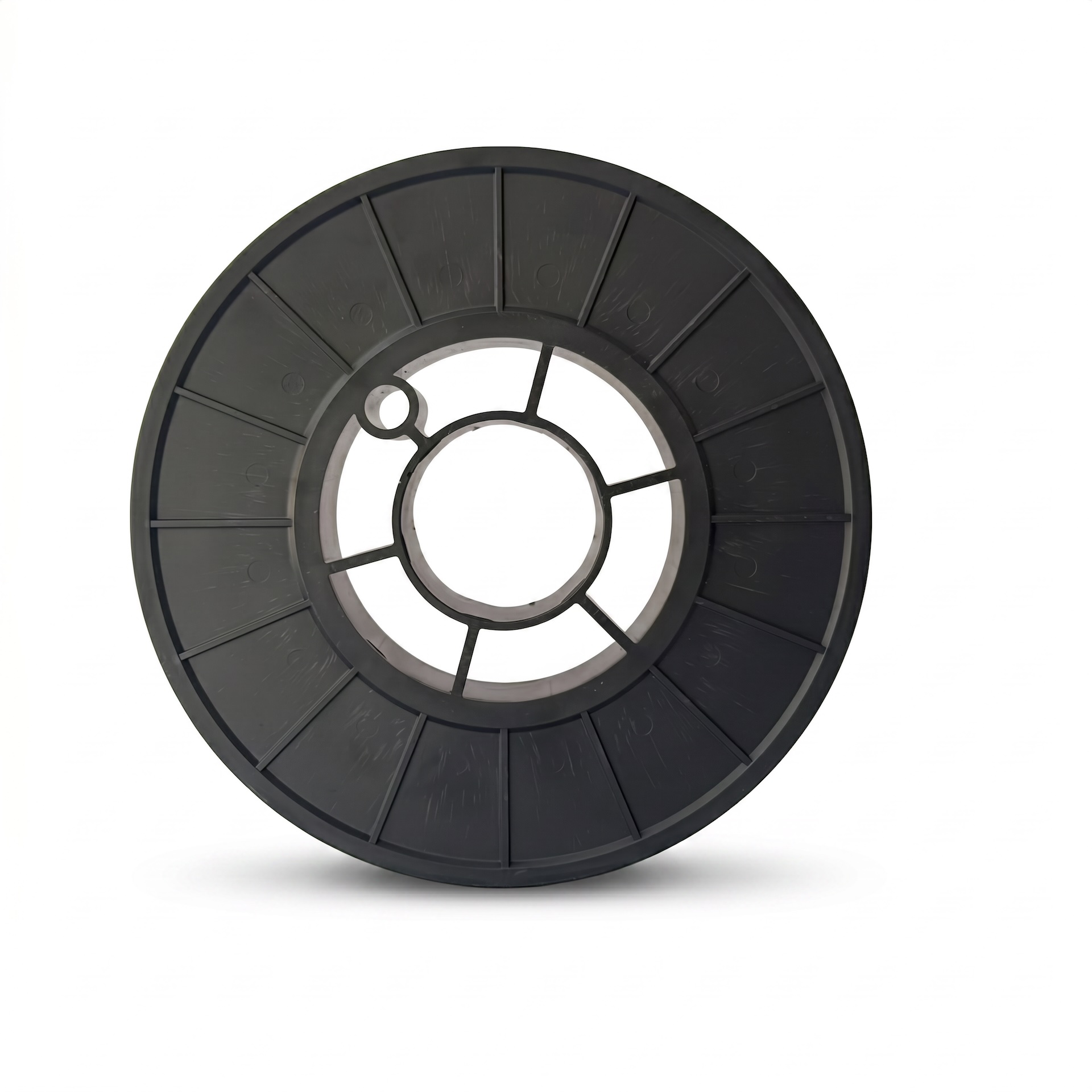

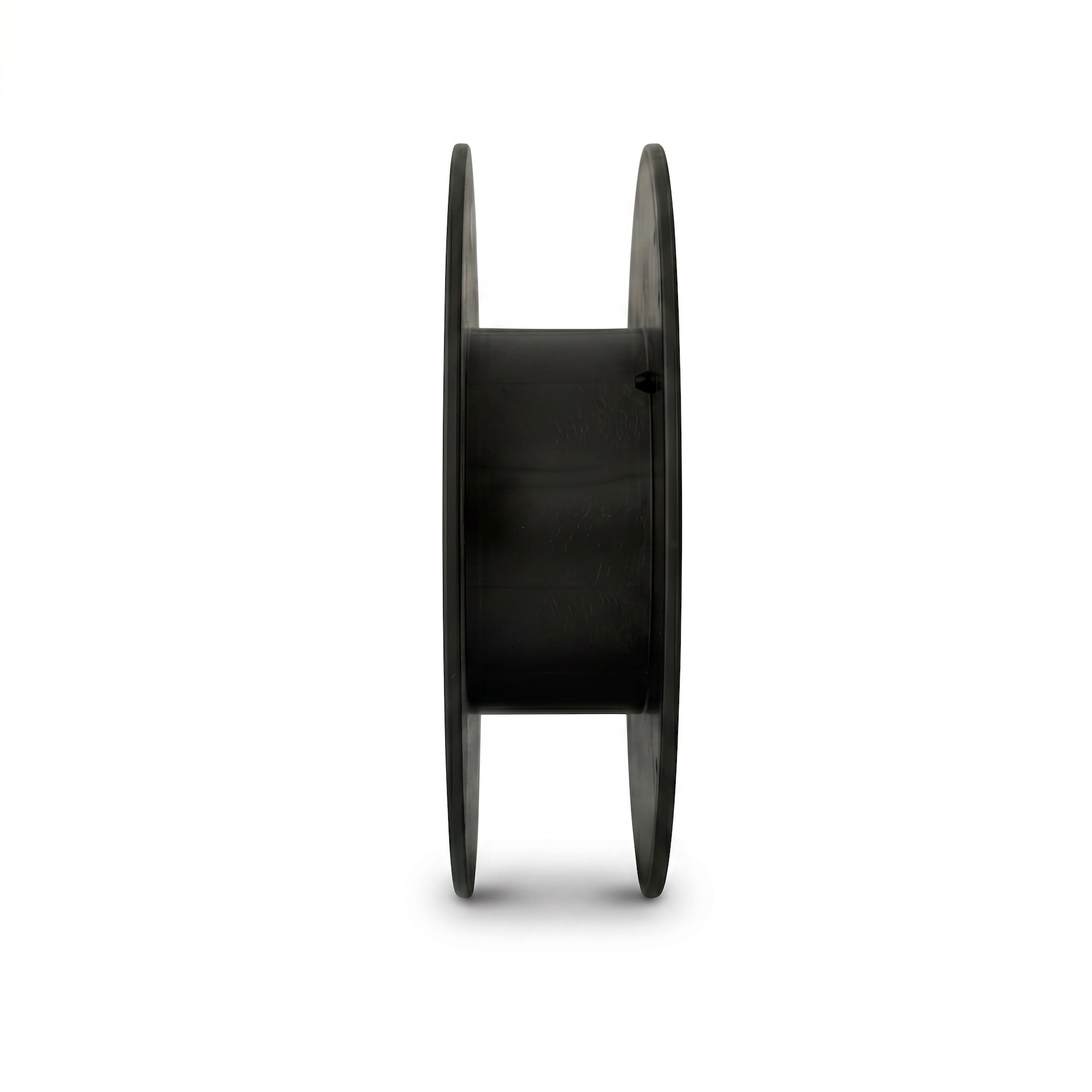

D200 Plastic Spool
Standard industrial model for welding wire weighing up to 5 kg. Classic profile compatible with all main types of welding machines and feeding mechanisms. Stable geometry ensures uniform unwinding.
Applications
- ›Welding wire
- ›3D filament
- ›Other wound products, depending on technical requirements
Technical specifications
Datasheet| Outer flange diameter (D1), mm | 198 |
|---|---|
| Winding diameter (D2), mm | 104 |
| Central hole (D3), mm | 53 |
| External width (L1), mm | 54.8 |
| Winding width (L2), mm | 46.8 |
| Material | Polystyrene (PS), injection molded |
| Colors | Black, white, transparent, blue |
| Product weight, g | 240 |
| Max winding weight, kg | 5 |
| MOQ, pcs | 3 000 |
Packaging
Carton & pallet| Quantity per carton, pcs | 60 |
|---|---|
| Carton dimensions (L×W×H), mm | 690 × 530 × 470 |
| Quantity per pallet, pcs | 1 200 |
| Boxes per pallet, pcs | 20 |
| Pallet dimensions (L×W×H), mm | 1200 × 1000 × 1970 |
| Full truck load, pcs | 28 800 |
MOQ & availability
MOQ 3 000 pcs per datasheet. Black stock; custom colors (white, transparent, blue) on request for project-based quantities.
Datasheet
D200 datasheetAvailable on request
Need a quote for D200?
Send your specifications and quantity — we'll come back with MOQ, lead time and pricing.
